分切機系列當前位置:首頁分切機系列

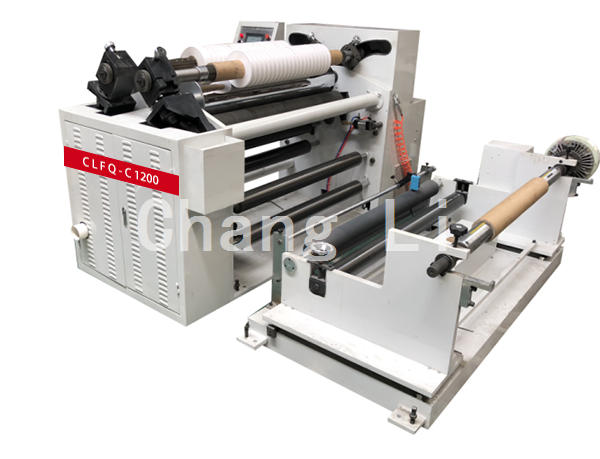

CLFQ-C1200型表面卷取復卷分切機

發布日期:[2018-12-27]     點擊率:

主要技術參數:Main Technical Parameters

機型
Model

800

1000

1200

卷材寬度
MAX.Parent Web Width

750mm

950mm

1150mm

放卷直徑
Max.parent Web Diameter

Φ800mm

Φ800mm

Φ800mm

收卷直徑
Max.Rewinding Diameter

Φ520mm

Φ520mm

Φ520mm

速度
Max.Machine Speed

0-180m/min

0-180m/min

0-180m/min

總功率
Total Power

4KW

5.5KW

5.5KW

重量
Machine Weight

2000kg

2300kg

2600kg

外形尺寸
Overall Dimensions

2800×2400×1200

2800×2600×1200

2800×2800×1200

紙芯規格
Paper core specification

圓刀Round Blade :3mm

直刀Razor Blade :3mm


可根據產品要求 訂制設備。

Can be made according to the product requires special equipment.


用途:

表面卷取復卷分切機適用于鋁箔、紙張、絕緣材料、燙金膜、塑料薄膜(BOPP、PET、PE、PVC)等窄幅分條復卷

特點:

1、放卷配有光電自動糾編裝置、磁粉制動器自動張力

2、配有自動計米、自動停機裝置

3、主機變頻調速

4、收卷二只磁粉離合器與主機聯動控制中心卷取與表面接觸并用,雙軸交叉收卷。

5、圓刀/直刀縱切,自動吹廢邊裝置。


Uses:

Surface winding slitting and rewinding machine is suitable for narrow strip rewinding such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC).

Features:

1. Unwinding is equipped with photoelectric automatic correction device and magnetic powder brake automatic tension

2, equipped with automatic metering, automatic shutdown device

3, the host frequency control

4. The two magnetic powder clutches and the main engine linkage control center are wound up and used in contact with the surface, and the two-axis cross winding is performed, never biting.

5. Round knife / straight knife slitting, automatic blowing waste side device.
