分切機系列當前位置:首頁分切機系列

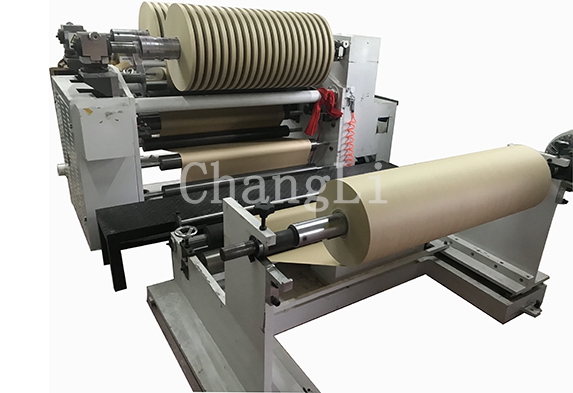

CLFQ-C型表面卷取復卷分切機

發布日期:[2018-08-17]     點擊率:

技術參數Parameters:

機型
Model

800

1000

1200

卷材寬度MAX.Parent Web Width

750mm

950mm

1150mm

放卷直徑Max.parent Web Diameter

Φ800mm

Φ800mm

Φ800mm

收卷直徑Max.Rewinding Diameter

Φ600mm

Φ600mm

Φ600mm

速度
Max.Machine Speed

0-200m/min

0-200m/min

0-200m/min

總功率
Total Power

5.5KW

5.5KW

7.5KW

重量
Machine Weight

2200kg

2400kg

2600kg

外形尺寸
Overall Dimensions

2200×2200×1300

2200×2400×1300

2200×2600×1300

分切寬度
Min.Slitting Width

圓刀Round Blade :3mm

直刀Razor Blade :3mm



用途:

表面卷取復卷分切機適用于鋁箔、紙張、絕緣材料、燙金膜、塑料薄膜(BOPP、PET、PE、PVC、PP、PS)等窄幅復卷分條


特點:

1、該機采用卷取及表面接觸并收卷方式

2、配有光電自動糾編裝置、張力磁粉制動器、離合器裝置

3、配有自動計米、自動停機裝置

4、主機變頻調速

5、上料方式:液壓上料、氣缸上料、無軸錐頂上料方式可選購


Uses:

Surface coiling and rewinding slitting machine is suitable for narrow-width rewinding slitting such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC, PP, PS).


Features:

1. The machine adopts winding and surface contact and winding method.

2, equipped with photoelectric automatic correction device, tension magnetic powder brake, clutch device

3, equipped with automatic metering, automatic shutdown device

4, the host frequency control

5, feeding method: hydraulic feeding, cylinder feeding, no shaft cone top feeding method can be purchased
